Product Description

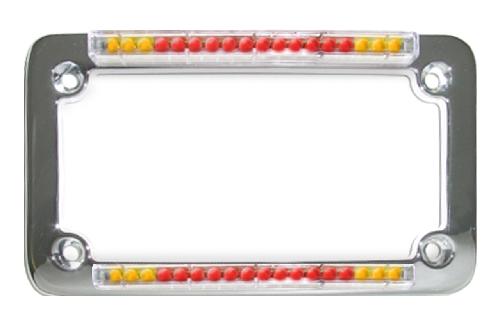

Chrome License Plate Frame with Dual RED LED light bars that feature AMBER sides for additional turn signals! Simple installation with easy to follow instructions.
This dual bar / dual intensity LED License Plate Frame has been designed to give greater visibility and conspicuity to your motorcycle. It has been engineered to function in both high and low intensity brightness for a multitude of applications. Because many motorcycles have only one brake/running light bulb, these units can easily be used as back-up brake, and running lights, providing you a greater degree of safety and added visibility.Additionally, this model features 3 amber LEDs on both sides of the light bars that function as additional turning signals! Mount and install this beautifully crafted license plate frame and give your bike an excellent finished appearance compared to an otherwise obtrusive license plate.
Details
This frame has a mirror finish chrome coating and features (2) 6" dual intensity red LED light bars with 18 LEDs each (24 red LEDs and 12 amber LEDs total) and are enclosed by clear 'euro style' lenses.
Installation
To install, nest your license plate into your license plate frame, continue by checking to see that the 4 mounting holes all align correctly. The use of a round metal file may be necessary to ensure alignment prior to installation, if adjustment with a file is necessary minimal filing is required. It is recommended during installation not to pinch the wires against the sharp edge of your license plate, as this can cause the wire(s) to shred from vibration causing the LED light bar to lose functionality. Some license plates may need to be 'notched' for the wires to remain undamaged. This LED license plate frame has 10 wires in total - 5 for the top LED light bar and 5 for the bottom LED light bar.
Wire Colors
Red Wire: Brake Light Wire
White Wire: Running Light Wire
Black Wire: Ground Wire
Purple Wire: Left Turn Signal (test with 12V source to verify orientation)
Brown Wire: Right Turn Signal (test with 12V source to verify orientation)
Specifications
Height (in): 4 1/4"
Length (in): 7 3/16"
Width (in): 1/2"
Material: Finished Zinc
Package Contents: (1) LED License Plate Frame
Color / Finish: Marine Grade Chrome Coating
Hardware Included: No
Water Resistant: Yes
Heat and Vibration proof: Yes
