SUSPENSION

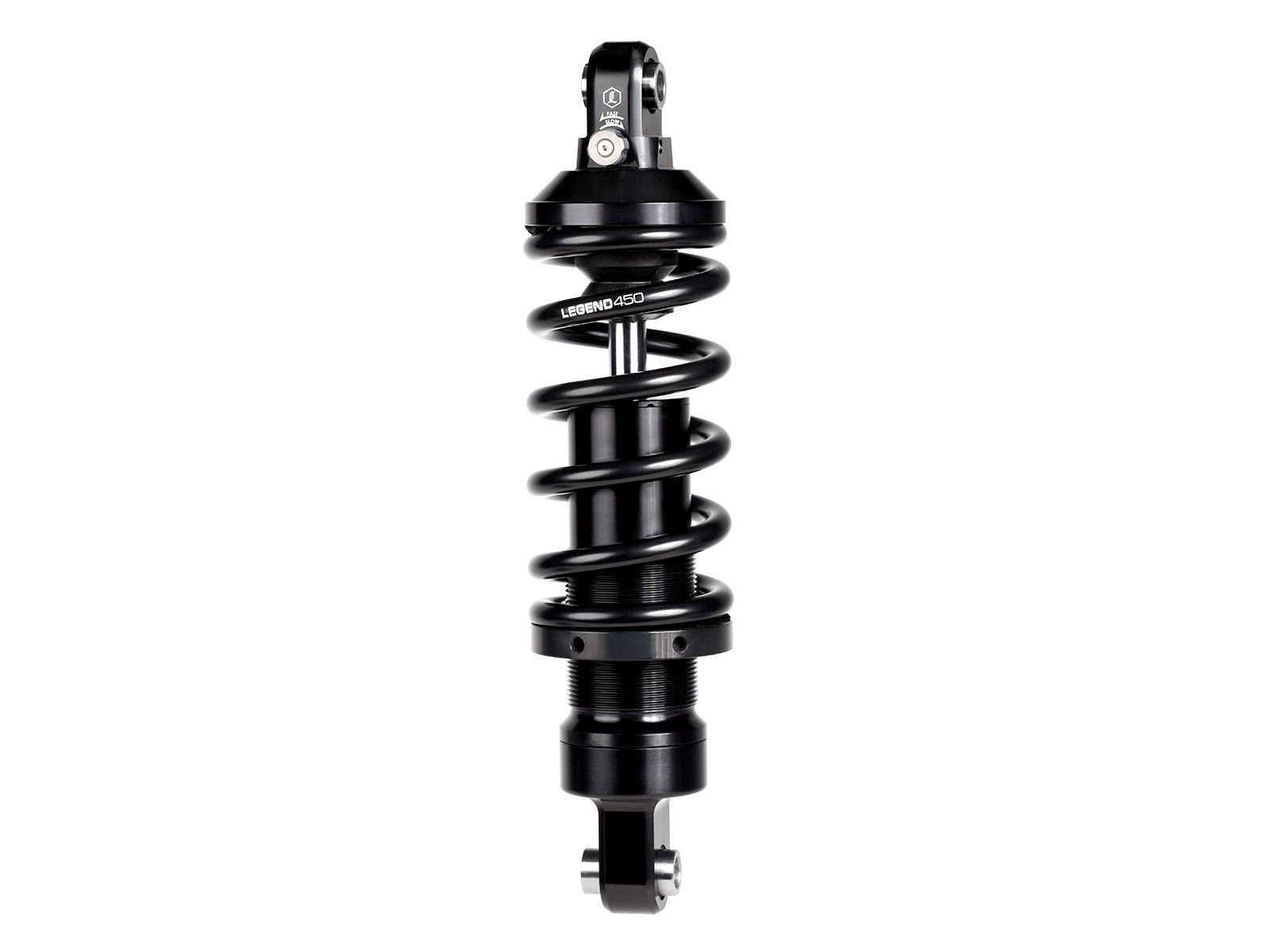

REVO-A ADJUSTABLE M-EIGHT SOFTAIL COIL 13" SUSPENSION

PART NO: 1310-2250

Size:
$949.95

International Orders?
Click here for shipping information

ABOUT THIS ITEM

REVO-A Coil provides improved plush ride quality, control, and resistance to bottoming out
Provides optimum rebound performance that can be fine tuned for any given rider weight, personal ride-quality preference or personal riding style
Adjustable preload for rider set up, also allows for minimal pre-load adjustment when changing between rider's weights and loads
Seven external knob adjustments allow fine-tuning of rebound utilizing needle valve technology to adapt to your riding style
PTFE linear sleeve bearings both top and bottom for ease of installation, this also allows the shock to float in its mount and avoid shock bind
Hard anodized machined Billet Aluminum 46 mm smooth bore mono tube utilizing a light weight high flow piston design for improved fluid flow resulting in unmatched handling and bike control
Hard chromed shaft is 14% larger for increased strength
High quality chrome-silicon spring for consistent spring rate for the life of the motorcycle
Internal floating nitrogen piston ensures consistent damping performance
Deflective disc-valved damping self adjusts to frequency and ensures controlled performance
Legend's durable and low friction sealing system and PTFE based sliding bearings for improved performance and feel
Available in Black Type III hard coat anodize
Easy installation and adjustment replacing the stock shock and mounts with original OEM hardware
Sold as Mono Shock (1 shock only)
Preload wrench included
Designed for optimum performance with the Legend Axeo front suspension
Lifetime Warranty
Made in the USA
2020-2022 Harley-Davidson Softail Low Rider S FXLRS
2020-2022 Harley-Davidson Softail Standard FXST
2019-2020 Harley-Davidson FXDR 114
2018-2022 Harley-Davidson Softail Heritage Classic 114 FLHCS
2018-2022 Harley-Davidson Softail Fat Bob 114 FXFBS
2018-2022 Harley-Davidson Softail Street Bob FXBB
2018-2022 Harley-Davidson Softail Fat Boy 114 FLFBS
2018-2021 Harley-Davidson Softail Heritage Classic FLHC
2018-2021 Harley-Davidson Softail Slim FLSL
2018-2021 Harley-Davidson Softail Sport Glide FLSB
2018-2020 Harley-Davidson Softail Low Rider FXLR
2018-2020 Harley-Davidson Softail Breakout 114 FXBRS
2018-2020 Harley-Davidson Softail Deluxe FLDE
2018-2019 Harley-Davidson Softail Breakout FXBR
2018-2019 Harley-Davidson Softail Fat Boy FLFB
2018-2019 Harley-Davidson Softail Fat Bob FXFB
2016-2017 Harley-Davidson CVO Pro Street Breakout FXSE
2016-2017 Harley-Davidson Fat Boy S FLSTFBS
2016-2017 Harley-Davidson Softail Slim S FLSS
2015-2017 Harley-Davidson Breakout FXSB
2015-2017 Harley-Davidson Softail Slim FLS
2015-2017 Harley-Davidson Fat Boy Lo FLSTFB
2015-2017 Harley-Davidson Softail Fat Boy EFI FLSTFI
2015-2017 Harley-Davidson Softail Deluxe EFI FLSTNI
2015-2017 Harley-Davidson Softail Heritage Classic EFI FLSTCI
2015         Harley-Davidson CVO Softail Deluxe FLSTNSE

PART APPLICATION

This item may be used with the following bikes:

  • HARLEY:
    • » SOFTAIL
    • » SOFTAIL 2018+
