ABOUT THIS ITEM

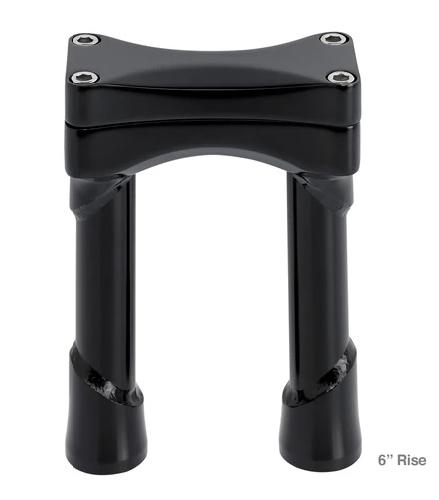

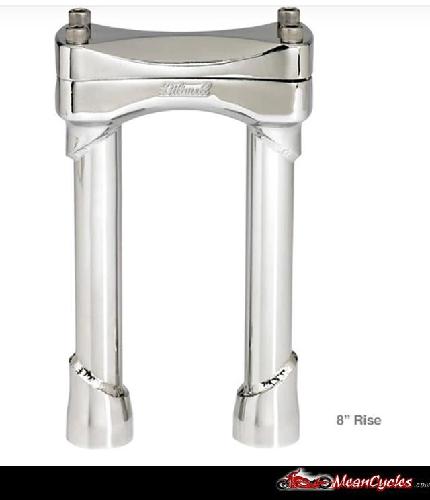

Investment-cast one-piece steel bar clamp accepts 1-1/8-inch O.D. handlebars
0.120-inch (3mm) wall x 1" O.D. 4130 chromoly uprights
CNC lathe-turned mounting bases accept 1/2-13 t.p.i. stock and aftermarket mounting hardware
Mounting holes on 3.5-inch centers to fit most stock and select aftermarket H-D fork trees
TIG welded and hand polished before plating
Black electroplate and mirror chrome-plated finishes available
Stainless-steel 5/16-18 t.p.i. bar clamp hardware

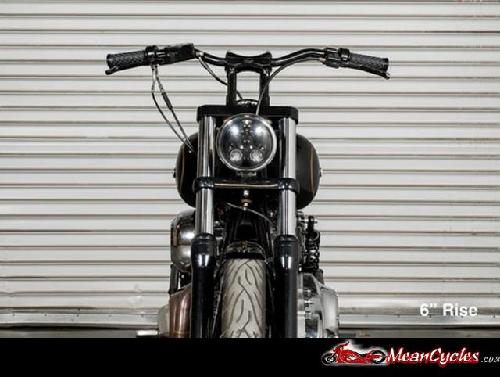

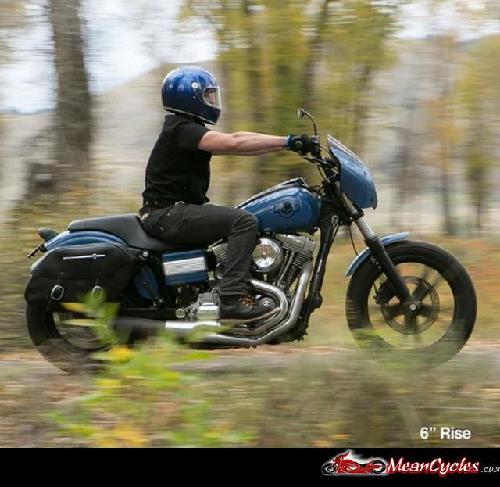

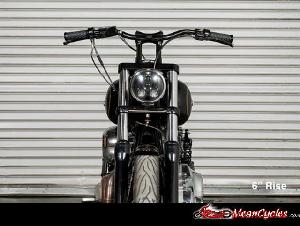

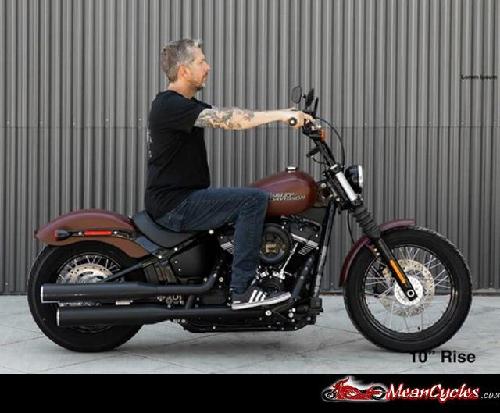

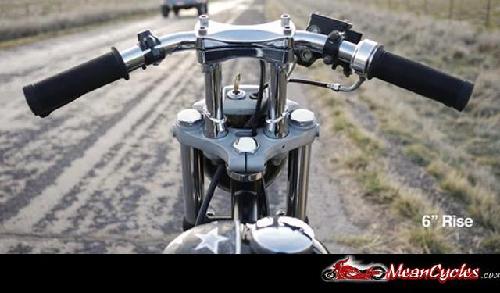

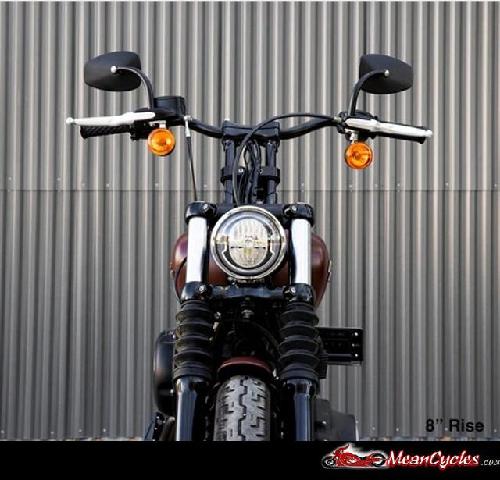

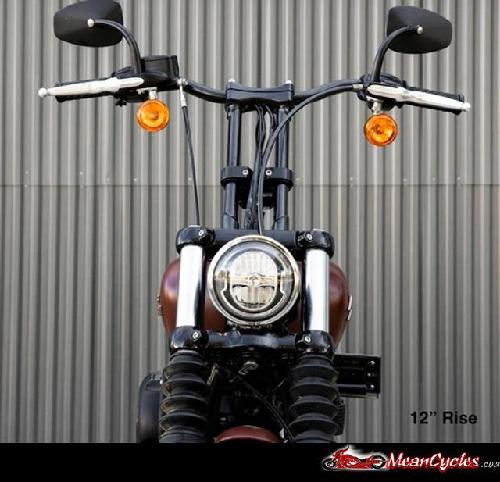

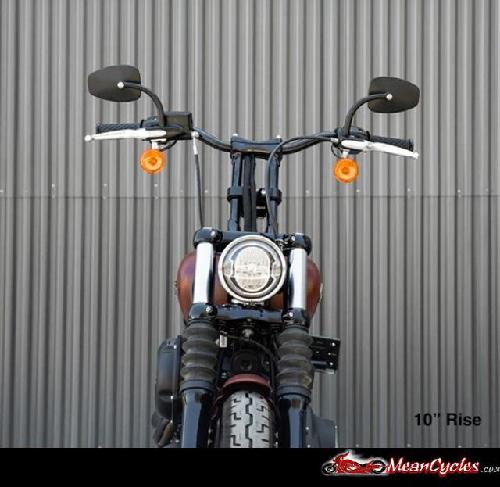

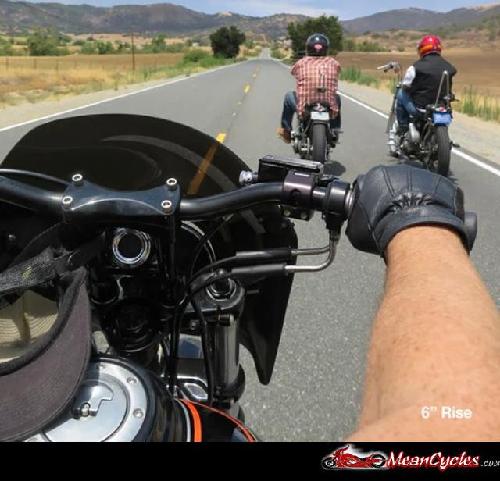

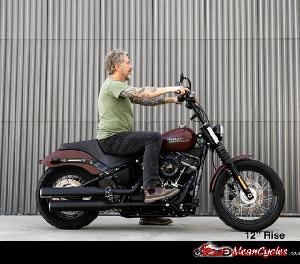

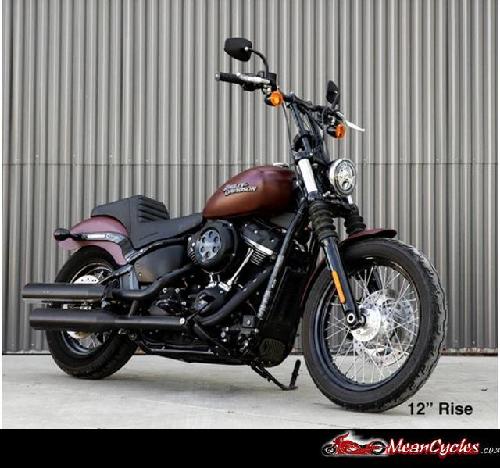

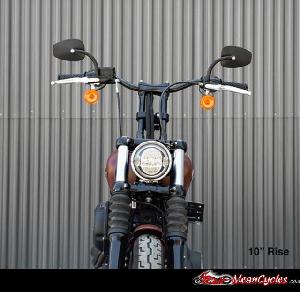

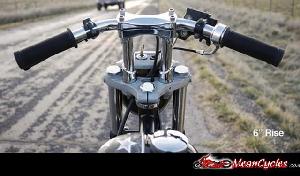

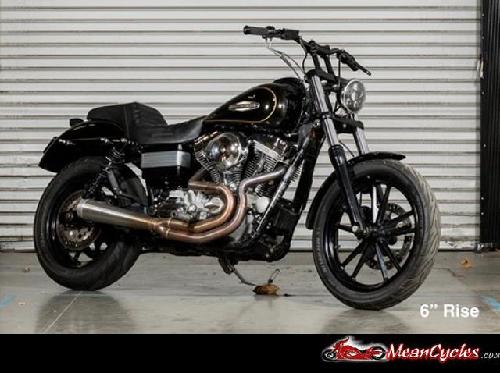

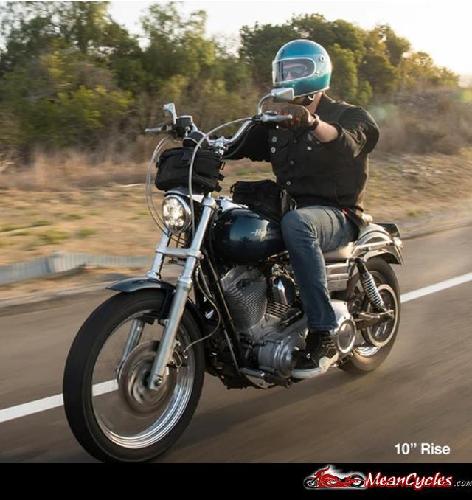

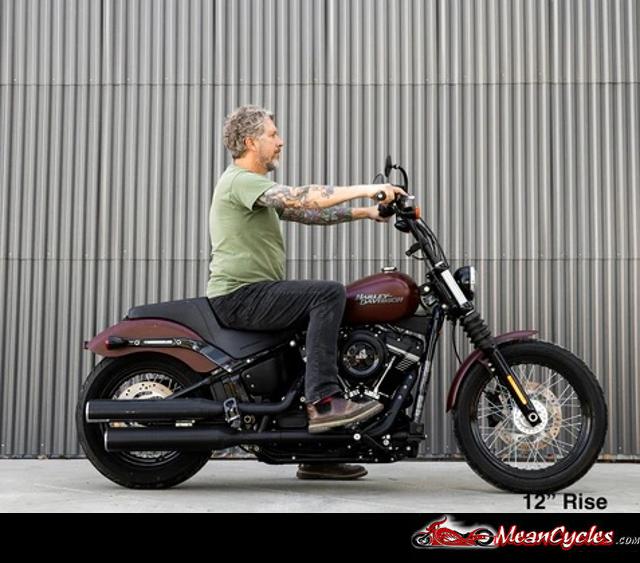

Available in 6-inch, 8-inch, 10-inch, 12-inch, and 14-inch rise heights
Technischer Überwachungsverein (Technical Inspection Association, or TüV) in Germany is an independent laboratory that tests the fatigue strength, manufacturing quality, and fitment for a wide range of consumer products, with special emphasis on automotive and motorcycle components and accessories. Biltwell handlebars and risers that have received TüV verification are among the strongest and most thoroughly well-tested motorcycle parts in the world.
0.120-inch (3mm) wall x 1" O.D. 4130 chromoly uprights
CNC lathe-turned mounting bases accept 1/2-13 t.p.i. stock and aftermarket mounting hardware
Mounting holes on 3.5-inch centers to fit most stock and select aftermarket H-D fork trees
TIG welded and hand polished before plating
Black electroplate and mirror chrome-plated finishes available
Stainless-steel 5/16-18 t.p.i. bar clamp hardware
Available in 6-inch, 8-inch, 10-inch, 12-inch, and 14-inch rise heights
Technischer Überwachungsverein (Technical Inspection Association, or TüV) in Germany is an independent laboratory that tests the fatigue strength, manufacturing quality, and fitment for a wide range of consumer products, with special emphasis on automotive and motorcycle components and accessories. Biltwell handlebars and risers that have received TüV verification are among the strongest and most thoroughly well-tested motorcycle parts in the world.
| TYPE | STRAIGHT |
| STYLE | MURDOCK |
| COLOR/FINISH | BLACK |
| BASE COLOR | BLACK |
| MATERIAL | STEEL |
| RISE | 6", 8", 10" or 12" |
| PULLBACK | 0" / 0 MM / 0 MM (0") |
| CLAMPING DIAMETER | 28,6 MM (1-1/8") / 1-1/8" / 28.6 MM |
PART APPLICATIONThis item may be used with the following bikes:
|
