RISERS

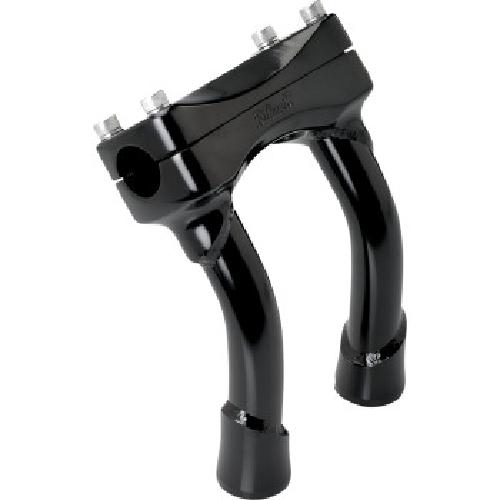

MURDOCK PULLBACK RISERS O/S 6" 8" 10" 12" - ((BLACK OR CHROME))

PART NO: 6414-201-06

Color/Size:
$269.95

International Orders?
Click here for shipping information


Available Sizes & Colors
  10 TALL12 TALL6 TALL8 TALL
BLACK 6414-201-10 6414-201-12 6414-201-06 6414-201-08
CHROME 6414-105-10 6414-105-12 6414-105-06 6414-105-08

ABOUT THIS ITEM

Investment-cast one-piece steel bar clamp accepts 1-1/8-inch O.D. handlebars
0.120-inch (3mm) wall x 1" O.D. 4130 chromoly uprights
CNC lathe-turned mounting bases accept 1/2-13 t.p.i. stock and aftermarket mounting hardware
Mounting holes on 3.5-inch centers to fit most stock and select aftermarket H-D fork trees
Pullback Murdock risers feature mandrel-bent uprights for two inches of rearward bar offset—perfect for reducing reach for shorter riders
TIG welded and hand polished before plating
Black electroplate and mirror chrome-plated finishes available
Stainless-steel 5/16-18 t.p.i. bar clamp hardware
Available in 6-inch, 8-inch, 10-inch, 12-inch, and 14-inch rise heights
Technischer Überwachungsverein (Technical Inspection Association, or TüV) in Germany is an independent laboratory that tests the fatigue strength, manufacturing quality, and fitment for a wide range of consumer products, with special emphasis on automotive and motorcycle components and accessories. Biltwell handlebars and risers that have received TüV verification are among the strongest and most thoroughly well-tested motorcycle parts in the world.
MATERIALSTEEL
RISE15 CM (6") / 6" / 15 CM
PULLBACK2" / 50.8 MM / 50,8 MM (2")
CLAMPING DIAMETER28,6 MM (1-1/8") / 1-1/8" / 28.6 MM
UNITSPAIR

PART APPLICATION

This item may be used with the following bikes:

  • HARLEY:
    • » DYNA
    • » SOFTAIL 2018+
    • » SPORTSTER
