Accepts factory or OEM accessory passenger floorboards


● Adjusts through 12 positions in a 9” rotating range of motion


● Can move passenger boards 4” forward over stock


● Has two rotating adjustments for ultimate comfort


● Adjusts without tools using knurled knobs and locking pins



The RVHDPBLA passenger board mounts offer the absolute best in passenger comfort and adjustability.

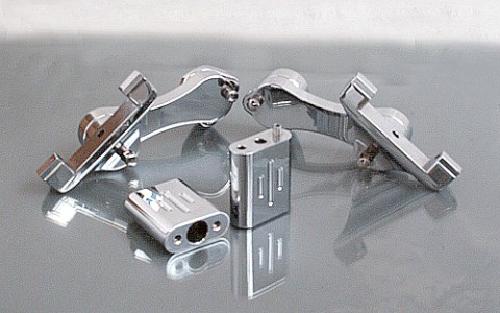

The set comes with right and left side adjustable passenger board mount assemblies and accepts your factory passenger boards or Harley-Davidson accessory passenger floorboards (passenger boards not supplied in the HDPBLA kit).

The RVHDPBLA offers a 9-inch range of rotational motion through twelve positions, at two places on the mount arms.

To adjust board height, forward or rear location, and board angle -pull out one of the knurled knobs, move the desired position, and then let the knob go so it clicks into place; no tools required.

Each RVHDPBLA mount set is CNC machined from T6061 aircraft quality billet aluminum, hand polished to a mirror like finish, triple chrome plated, then hand assembled and inspected.

The RVHDPBLA mounts are also available in black under part number RVHDPBLA-BK. FLH and FLT models that have Rinehart True Dual exhaust installed will need HDPBLA-RE and HDPBLABK-RE.

NOTE – Each of the rotating HDPBLA assemblies go through a multi-step adjustment and shimming process before being torqued to our exact specifications.
Therefore, rotating them to make adjustments may take a bit of force at first.
This is normal; and the assemblies will loosen up a bit as they get used. We designed the HDPBLA for adjustment and stability when mounted, so adjusting them uninstalled while holding them in your hands will also be difficult.
