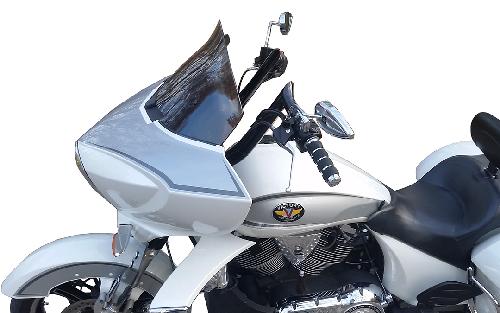

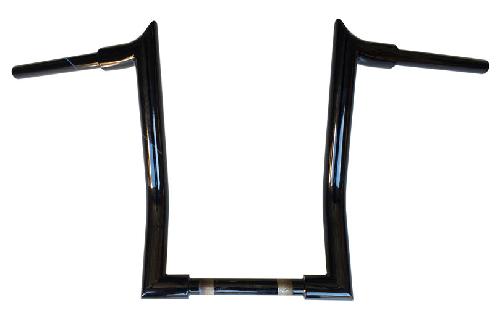

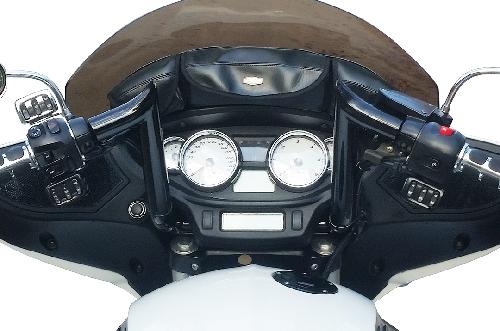

VICTORY CROSS COUNTRY 1-1/2 PHATT APE HANGERS.

WILL WORK WITH STOCK CABLES AND WIRES UP TO 16" TALL.

AVAILABLE 14" OR 16"


1 1/2" TUBING STEPPED DOWN TO 1" TUBING FOR HAND CONTROLS

.120 WALL THICKNESS.

100% TIG WELDED.

THESE COME POWDER COAT GLOSSY OR SATIN BLACK •


34” BAR TIP TO BAR TIP
10-1/2" Side to side inside
8" OF PULLBACK
(INSTALLATION NOTES)
By re routing your cables, wires and re angling your banjo fitting these bars will bolt right on with out extending any of your cables
On the inside of the switch housings there is a little alignment dowel that will need to be gridded down with a file or dremel
