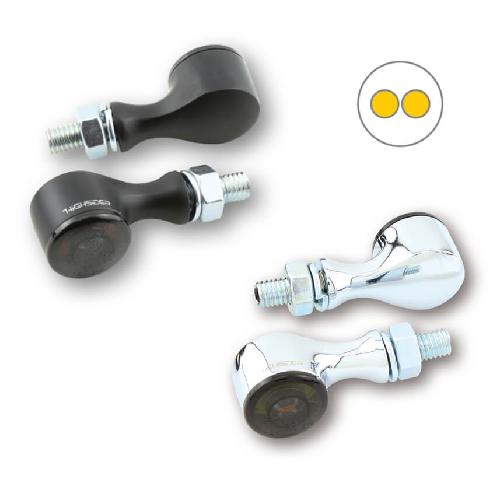

The Highsider Apollo Classic LED Turn Signals take classic styling cues and combine them with modern housings.
The slender round forms support the classical styling.
In this innovative lighting technology, 2 very bright amber SMD LEDs are installed in the center, which allows for an extremely compact design.
The outer ring, on the other hand, consists of the new COB technology (Chip On Board). Thanks to the new LED chip embedding for high-power LEDs, a very high luminance can be achieved with currently the best possible efficiency and service life. For use as front or rear turn signal.
Dimensions
A Diameter: .87″ (22mm)
B Width: 1.55″ (39mm)
C Depth: .85″ (21.5mm)
Stem Length: .63″ (16mm)
M8 x 1.25 threaded stud
Connections:
Black wire = ground (-)
Yellow wire = turn signal (+)
LENS COLOR | SMOKE |
LED/LIGHT COLOR | AMBER / WHITE |
OVERALL DIAMETER | 7/8" |
LENGTH | 7/8" |
WIDTH | 1-1/2" |
MOUNTING POSITION | FRONT |
