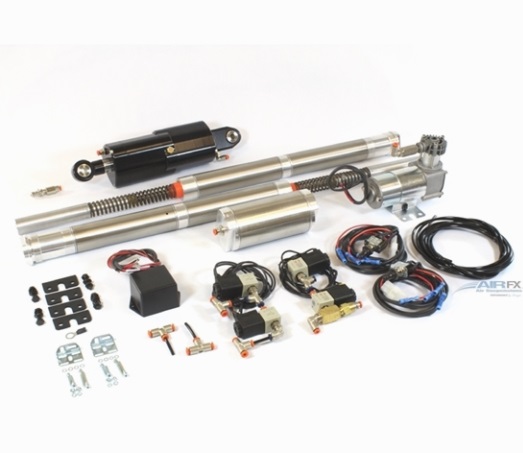

This kit includes everything you need to install front and rear air suspension on your M109R.

A pair of front cartridges:

These replacement style cartridges are a perfect fit, without any modifications required.
Each cartridge has two chambers for lift, and one for rebound in axial alignment.
This increases piston surface area, reducing the air pressure required to lift the bike.
The result is a much smoother/consistent ride and increased handling performance.

Front Valve Pair:

This valve assembly controls the front air ride for complete air ride systems.
For use with instant-up kit air supply.
The valve package has been assembled, sealed, and leak tested.

Rear mono shock anodized black:

The AirFX Magnum shock out performs all other air ride systems in both comfort and durability.
Our new shock technology incorporates a double sealed 63mm extra large composite piston.
This requires less air pressure and creates a softer, smoother, and consistent ride.
The specially designed shock body uses an upper spherical bearing to allow the shock body to pivot in all directions.
This minimizes shock side loading or pivot friction while increasing response when cornering.

Compact Compressor Assembly:

Comes with a Omega style mounting bracket.
Insulated wiring is pre-installed.
Equipped with thermal overload protector that will shut down the unit when overheated.
When cool, the compressor will automatically restart as normal.

Toggle Switch Wiring Harness:

Three position, spring centered, toggle switch with protective black boot and wiring harness.
Pre-wired and tested.

Instant Up Kit, Dual Tank:

Includes: Air tank, compressor control box, and rear valve pair. Control box will cycle the compressor to charge the air tank to 190psi.
