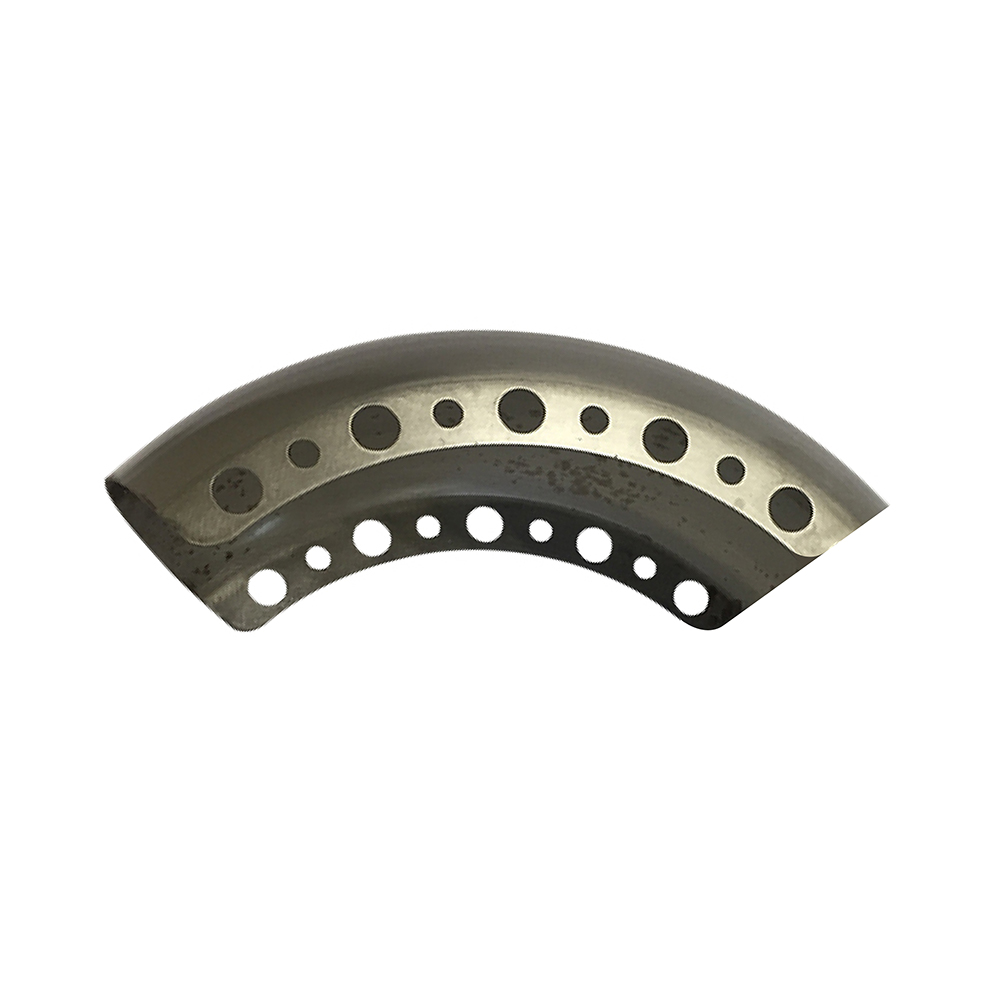

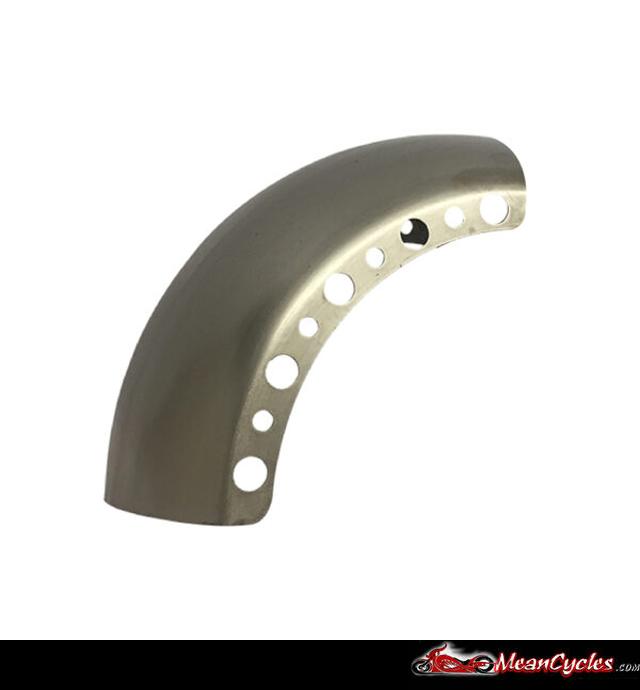

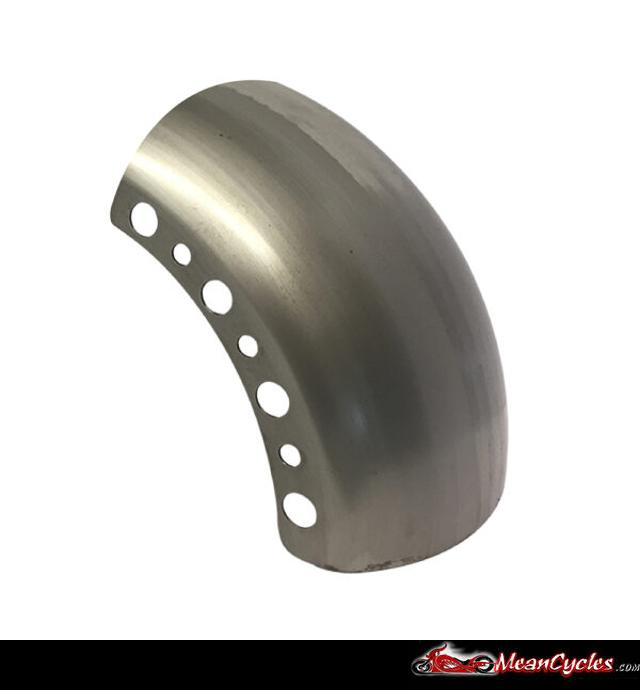

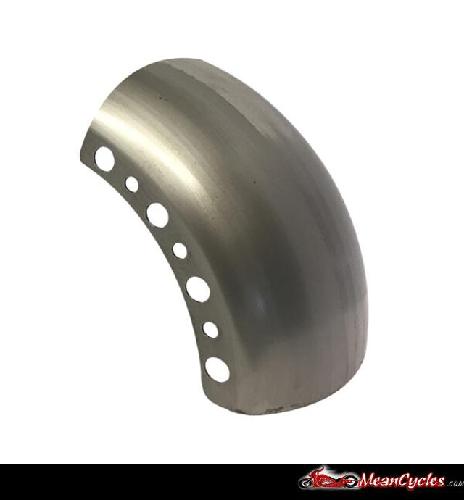

Speed Holes Shotgun Rear Custom Fender Short 90 Degree Steel
Combine the aggressive bobber silhouette of a short fender with the race-inspired attitude of a lightened design.
The Speed Holes Shotgun Rear Fender covers just the top arc of the wheel in compact 90-degree form, while precision-cut speed holes add raw, high-performance character to the most exposed part of your build.

Key Features;

Short 90-degree coverage combined with precision-cut speed hole lightening holes
Compact bobber profile with race-inspired visual details – dual-style design in one piece
Approximately 21-inch arc length exposes maximum tire and drivetrain
Hand-spun from 13-gauge U.S. steel with standard 1.75-inch sidewall depth
Ships raw for full control over surface prep, body filler, and paint or powder coat finish

Technical Specifications:

Style: Speed Holes Shotgun (Short / Race-Inspired)
Arc Length: Approx. 21 inches (1/4 circle)
Material: 13 Gauge U.S. Steel, TIG Welded
Outer Diameter: 27 inches
Sidewall Depth: 1.75 inches (Standard Radius Profile)
Wheel Compatibility: Optimized for 18-inch motorcycle wheels
Finish: Raw, uncoated hand-spun steel
Origin: Made in the USA

Fitment Notes:

This is a custom fabrication part – not a bolt-on replacement for any specific motorcycle
Requires custom spacers, bungs, or struts for mounting; hardware sold separately
Drilling, welding, and fabrication are required to fit your specific frame width and geometry
Supplied in raw, uncoated spun steel finish; visible spinning lines are normal and expected on hand-spun parts
Apply high-build surfacer or body filler to smooth the surface before painting or powder coating
Optimized for standard 18-inch motorcycle wheels; select fender width by rear tire size
