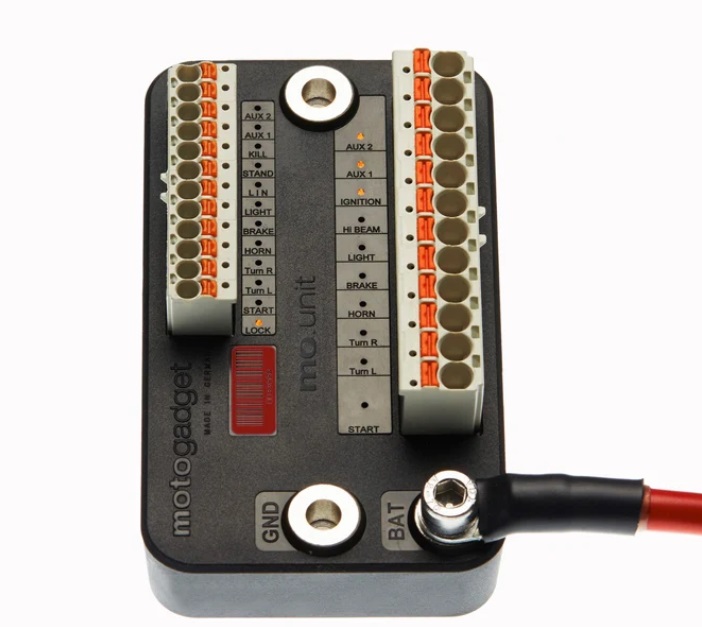

The mo.unit basic is a digital control center—the heart of the entire vehicle’s electrical system. It can be operated using either push-button controls or conventional, switch-type handlebar controls. The mo.unit basic controls all components in the vehicle via wear-free, high-performance semiconductor switches and performs the functions of electrical fuses. Various relays, connectors, and individual components in the wiring harness can be eliminated, allowing for the quick and easy installation of a new, streamlined vehicle wiring system.

The mo.unit basic features 12 inputs, 10 outputs, and interchangeable, high-quality cable clamps.

Functions

Push-button control for 4 or 5-button operation
Replacement of the vehicle fuses
Alarm system
Load-independent flasher relay
Hazard warning lights
Blinker as position light (adjustable)
Time-controlled blinker switch-off
Path-controlled turn signal deactivation (speedometer sensor required)
Parking light and headlight flasher
Control of low beam and high beam with one button
Stop light modulator (8 adjustable modes)
Emergency stop light
Garage light
Fan run-on
Hyperbeam (200W high beam + low beam)
Starter relay for starter with magnetic switch (max. 30 A)
Intelligent switch-off of consumers at startup
Integrated, digital horn relay
Two configurable additional outputs AUX1 and AUX2
Complete wiring system diagnostic function
Defect detection of all light sources
