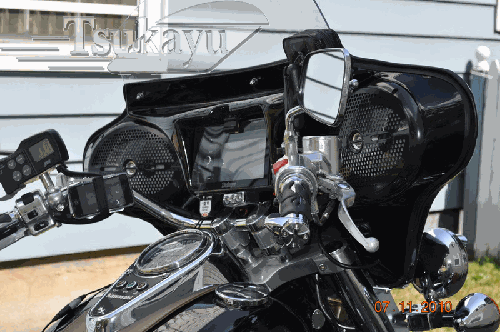

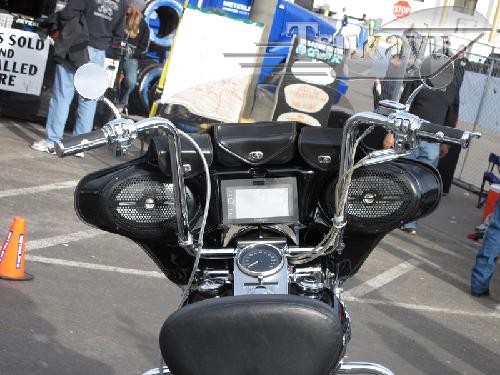

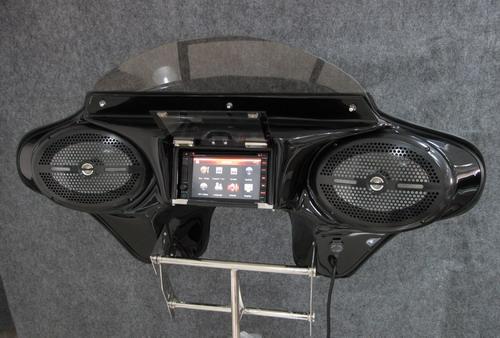

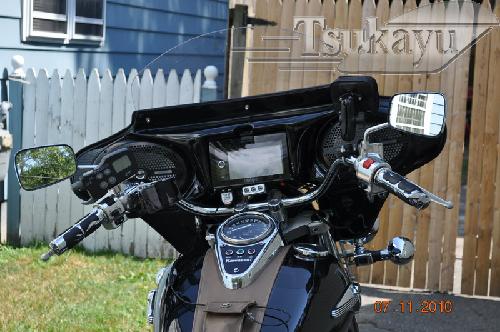

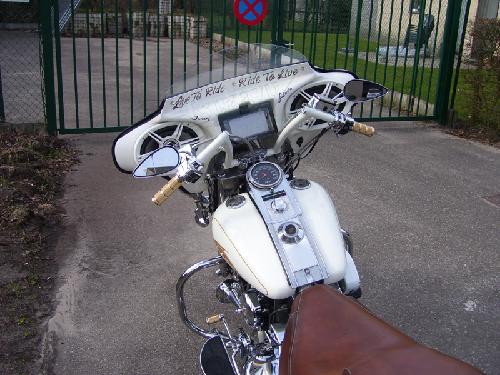

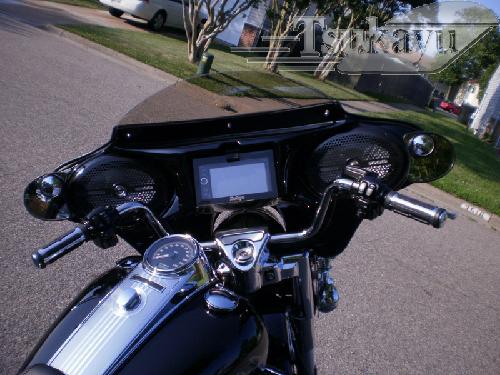

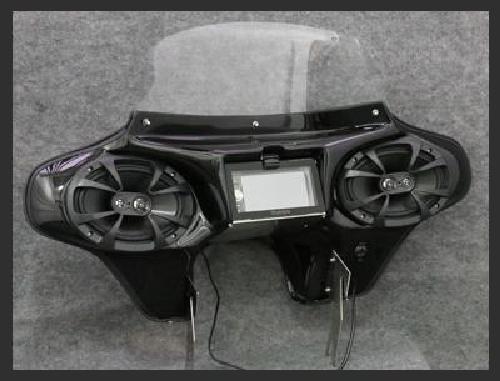

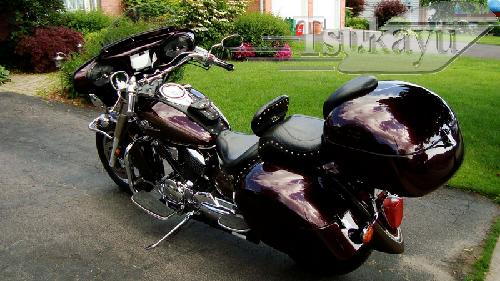

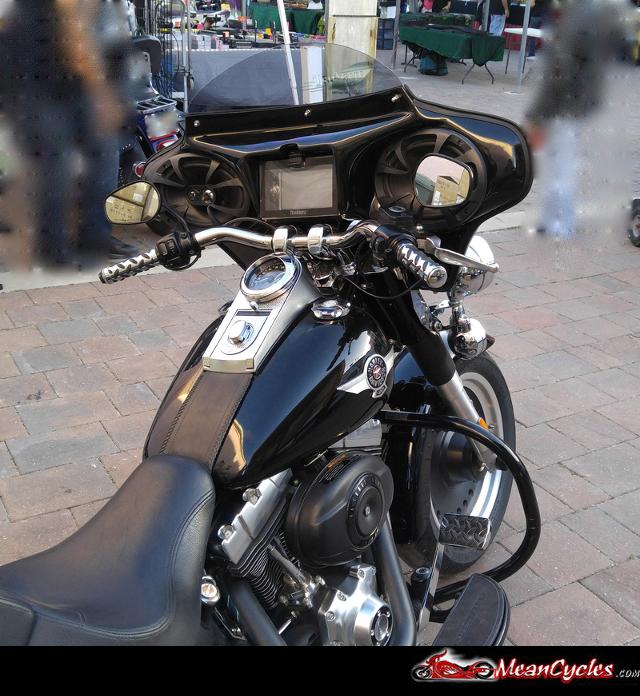

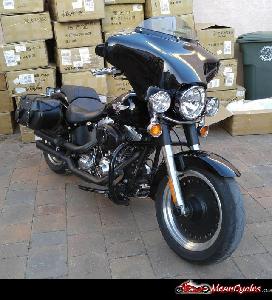

BATWING GPS FAIRING WITH 6x9 MARINE SPEAKERS (PRIME OR BLACK)

PART NO: TS-GPS-6X9-PRI

Color:
$1,899.95
$999.95
Save: $900.00

International Orders?
Click here for shipping information
TSUKAYU PRODUCTS SHIP FROM OVERSEAS DIRECTLY TO YOU- FREE SHIPPING DOES NOT APPLY. SHIPPING COST TO THE US COULD VARY FROM $155.00 TO $225.00 USD, FOR OTHER COUNTRIES PLEASE REQUEST A QUOTE. DELIVERY COULD TAKE UP TO 5 TO 7 WEEKS FOR PRIME OR GLOSS BLACK -- AND -- 6 TO 8 WEEKS FOR COLOR MATCH. COLOR MATCH CODE CAN BE FOUND HERE: http://www.colorrite.com/ TSUKAYU ORDERS CAN'T BE CANCEL AFTER PLACED

ABOUT THIS ITEM

Exclusive and original GPS Fairing which fulfills most of riders needs.
-Combination of GPS navigating and music enjoyment during riding. Eonon GPS stereo (Model GA2165)

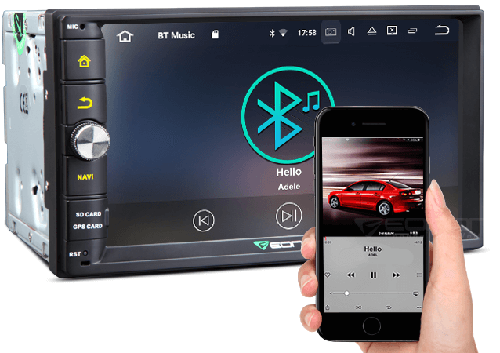

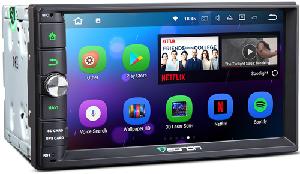

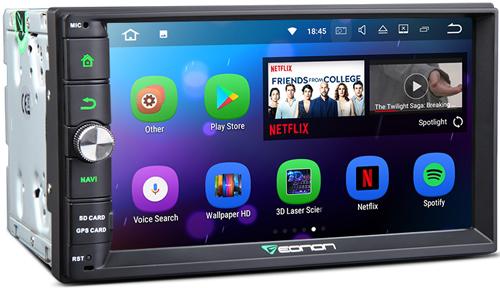

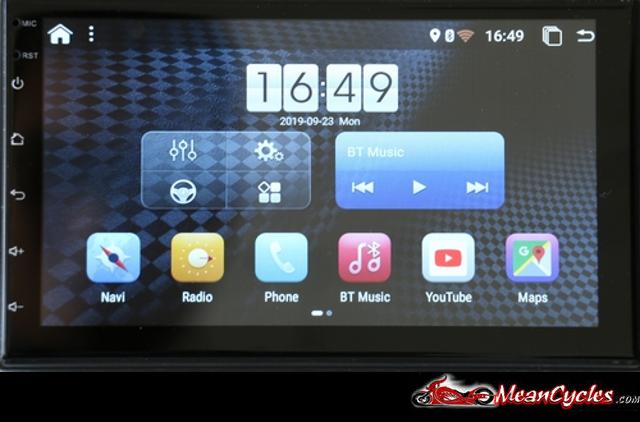

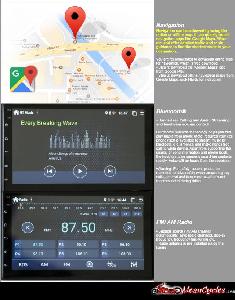

Eonon GPS stereo (Model GA2165)
• Android 7.1 OS, 2GB RAM & strong quad-core processor ensures a high speed of response

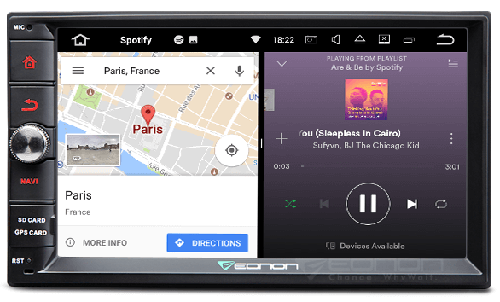

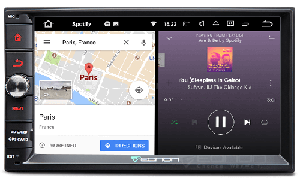

• Split screen mode allows running two apps side by side

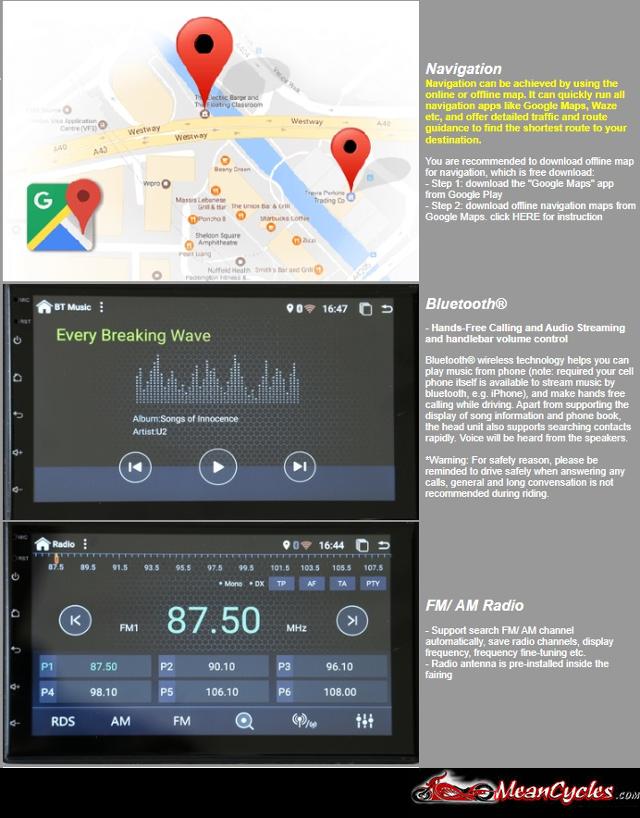

• Navigation can be achieved by using the online, offline map or purchasing a map card (GPS Map card is NOT included)

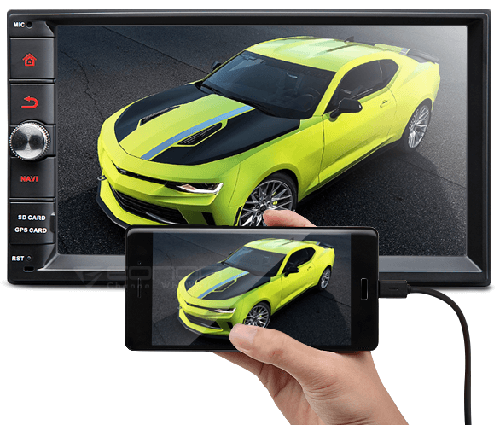

• HDMI output transmits provides you a world-class viewing experience. (Only for headrest or monitor with HDMI input.)
• Support Subwoofer output volume adjustable & Bluetooth Music Info Display
• 1024x600 HD screen delivers more crystal clear picture quality
• Travel easy with navigation system
• Installation size: 182(Width) x 131(Depth) x 104(Height) mm

Specification:
- Operating voltage: DC 12V
- Range of operating: 9V - 16V
- Maximum power current: 10A
- Radio function FM/ AM: Range at 87.5MHz - 108.0MHz, high sensitivity
- Bluetooth: built-in handfree bluetooth which supports call-in display, dial record consul, dial keyboard, phone book
- Built-in Bluetooth and microphone (Extra external mic)

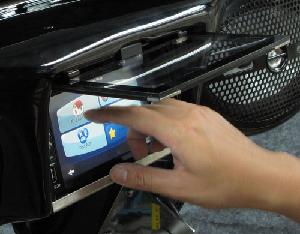

- Touch screen: graphical user interface (GUI), less visible buttons more friendly operation. Allows you to operate the GPS stereo easily and conveniently
- support playing video and music, and browse pics from head unit memory, SD card or USE: compatible with MP3/ MP4/ WMA/ WAV/ AC3/ AVI/ MKV/ WMV/ MPG/ RMVB/ JPEG.
- USB input: Support USB smart phone charge
- Operating temperature: -20°C to 60°C, Humidity: 45% - 80% (relative humidity)
- Storage temperature: -30°C to 70°C, Humidity: 39% - 80% (relative humidity)

GPS stereos uses Wifi or mobile network

Customers use online maps such as google Maps or Waze

1000W TEAC Amplifier - TE-MD4
- Optional, additional $180/ set (Original $225/ set)
Wired Handlebar remote control v3.0 with Bluetooth and iPhone stand
- Optional, additional $150/ set
Model compatibility - Road King Standard / Custom / Police.., Heritage Softail and Fat Boy, all VTX models, Nomad 1600 / Vulcan 1600 Classic, Vulcan 1500 Classic FL,Shadow Aero / Sabre, Valkyrie, V-star, RoadStar, VL1500LC /C90, Volusia 800 / C50, Victory Kingpin, and more etc
2018+ Softail models with original Harley mounts.

INCLUDES CLASSIC 5" or 8" clear or smoke (Please let us know under COMMENTS section).

10" FLAT CLEAR OR SMOKE EXTRA $20.00
5" OR 8" CURVY CLEAR OR SMOKE EXTRA $30.00
10" CURVY CLEAR OR SMOKE EXTRA $40.00

Make and Models

Requirements / mounting systemInner Fairing Compatibility
Harley Davidson
Road King (1994 or up) with factory quick detach windshield mounts, details are as follows

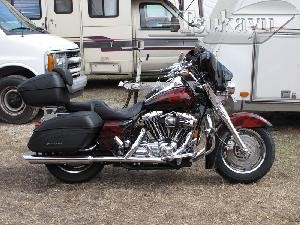

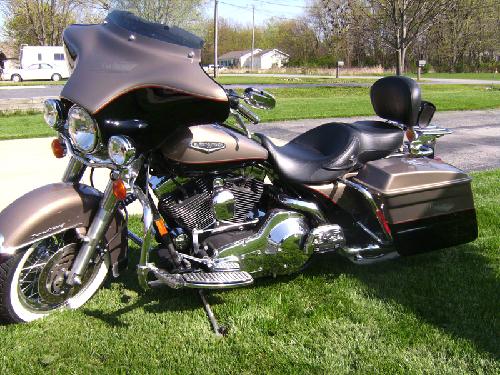

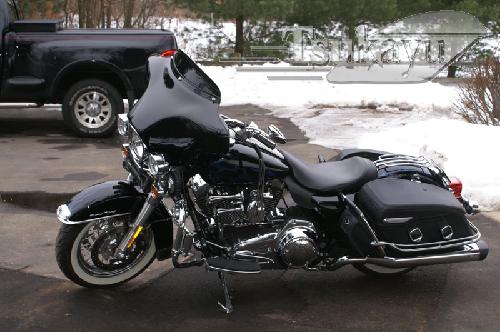

Road King Standard (FLHR) - direct fit with the factory windshield mounts
-ALL hardware included

- GPS fairing

Road King Police (FLHP)- direct fit with the factory windshield mounts
- Speedometer on handlebar should be relocated
-ALL hardware included		- GPS fairing
Road King Classic (FLHRC)- direct fit with the factory windshield mounts
-ALL hardware included

- GPS fairing

Road King Custom (FLHRS)

- direct fit with the factory windshield mounts
-ALL hardware included

- GPS fairing
Screamin' Eagle Road King
(FLHRSE4)		- direct fit with the factory windshield mounts
-ALL hardware included		- GPS fairing
Freewheeler (FLRT)

- direct fit with the factory windshield mounts
-ALL hardware included

- GPS fairing


Softails (2000 or up)
With FL front-end and factory quick detach windshield mounts, details are as follows

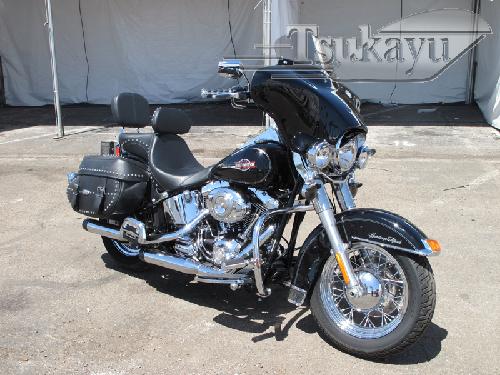

Heritage Softail Classic (FLSTC)- direct fit with the factory windshield mounts
-ALL hardware included		- GPS fairing
2006 Heritage Softail (FLST)- fit with the quick detach windshield mounting kit,
requires relocation of stock turn signals with Auxiliary
Lighting Kit (HD p/n 69287-05) or a Windshield Adaptor
Kit (HD p/n 58270-02) (NOT included)
-ALL other hardware included		- GPS fairing

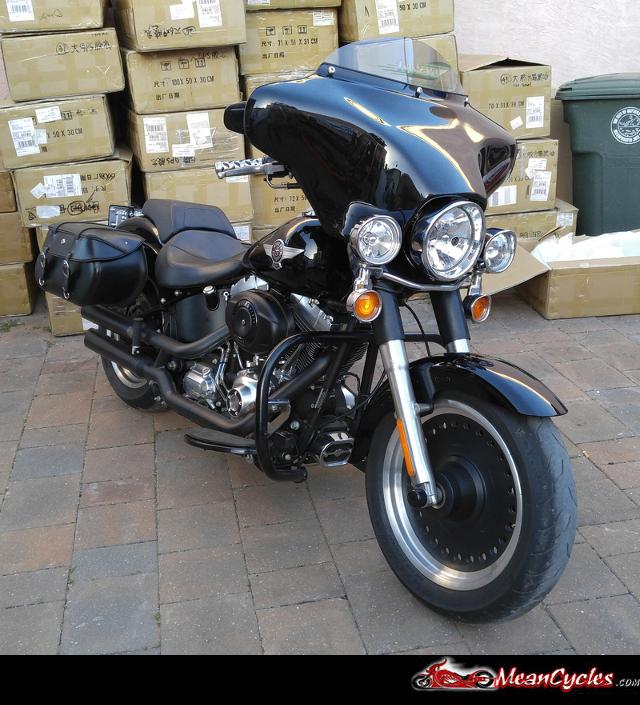

Fat Boy (FLSTF)- fit with the quick detach windshield mounting kit,
requires relocation of stock turn signals with Auxiliary
Lighting Kit (HD p/n 69287-05) or a Windshield Adaptor
Kit (HD p/n 58270-02) (NOT included)
-ALL other hardware included		- GPS fairing

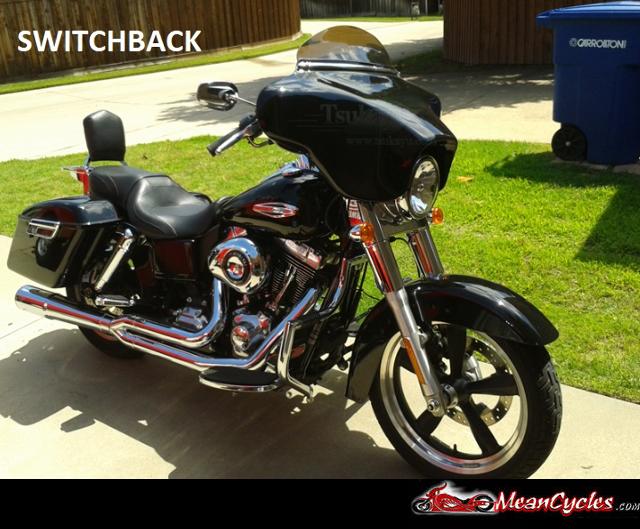

Switchback (2000 or up)- fit with the quick detach windshield mounting kit
-relocation of stock turn signals is recommended
-ALL hardware included		- GPS fairing
Softail Slim (FLS)- fit with the quick detach windshield mounting kit,
requires relocation of stock turn signals with Auxiliary Lighting Kit (HD p/n 69287-05) or a Windshield Adaptor
Kit (HD p/n 58270-02) (NOT included)
-ALL other hardware included		- GPS fairing
HONDA
VTX 1300S/T/Retro (2003-2009) (Covered forks)-ALL Hardware included- GPS fairing
VTX 1300C/F (2001-2009)
(Exposed  forks)		-ALL Hardware included- GPS fairing
VTX 1800R/S/T (2001-2009)
(Covered forks / Exposed Forks)		-ALL Hardware included- GPS fairing
VTX 1800C (2001-2009)
(Covered forks / Exposed Forks)		-ALL Hardware included- GPS fairing
GL1500 Valkyrie (1997-2003)-ALL Hardware included
Speedometer on handlebar should be removed		- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)
VT750 Shadow Aero (2004-2014)-ALL Hardware included- GPS fairing
VT1100 Shadow Sabre
(2000-2008)		-ALL Hardware included
- Speedometer on handlebar should be removed		- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)
VT750 Shadow ACE DLX
(1998-2003)		-ALL Hardware included- GPS fairing

YAMAHA
XVS650 V-star Classic / Silverado
(1998-2013)		-ALL Hardware included- GPS fairing
XVS1100 V-Star Classic
(1998-2013)		-ALL Hardware included- GPS fairing
XV1600/1700 Road Star
Road Star Silverado / Silverado S
(1999-2013) (including Midnight)		-ALL Hardware included- GPS fairing
Raider/ Raider S (2006-2015)-ALL Hardware included- GPS fairing

SUZUKI
Boulevard C50 / C50T (2005-2014)-ALL Hardware included- GPS fairing
Boulevard M50 (2005-2009)-ALL Hardware included- GPS fairing
Boulevard C109R / C109RT-ALL Hardware included- GPS fairing
VL800K Intruder Volusia
(2001-2013)		-ALL Hardware included- GPS fairing
VL1500LC Intruder (1998-2004)-ALL Hardware included- GPS fairing
Boulevard C90 / C90T
(2005-2009)		-ALL Hardware included- GPS fairing
Boulevard C90 / C90T / BOSS
(2013-2016)
--ALL Hardware included- GPS fairing
VZ 1600 Marauder-ALL Hardware included
- Speedometer on handlebar should be removed		- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)

KAWASAKI

Nomad 1500

- Direct Mount to forks
-ALL Hardware included
- require removal of part of factory windshield mount
and lower windshield, fit directly to the stock mounting
holes, bolt-on mounting system, not quick detachable
- GPS fairing
Nomad 1600- Direct Mount to forks
-ALL Hardware included
- require removal of part of factory windshield mount
and lower windshield, fit directly to the stock mounting
holes, bolt-on mounting system, not quick detachable
- GPS fairing
Nomad 1700- Direct Mount to forks
-ALL Hardware included
- require removal of part of factory windshield mount
and lower windshield, fit directly to the stock mounting
holes, bolt-on mounting system, not quick detachable
-ALL Hardware included		- GPS fairing
VN800 Classic With Big Headlight
-ALL Hardware included - GPS fairing
VN900 Vulcan Classic / Classic LT
(2006-2015)		-ALL Hardware included- GPS fairing
VN900 Vulcan Custom
(2006-2015)		-ALL Hardware included- GPS fairing

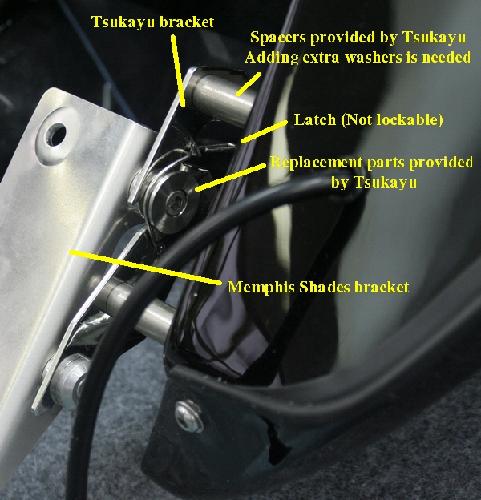

VN1500 Vulcan Classic FI
(2001-2008)		- requires Memphis Shades bracket MEM9926
(NOT included)
- bracket plates that work together with Memphis Shades MEM9926 included		- GPS fairing
VN1500 Vulcan Classic
(1996-2005)		--ALL Hardware included- GPS fairing
Vulcan 1600 Classic
-ALL Hardware included		- GPS fairing
Vulcan 1700 classic LT- Bolt on to Kawasaki factory windshield mount
-ALL Hardware included		- GPS fairing

Vulcan 1700 classic

-ALL Hardware included- GPS fairing

Vulcan 2000 classic /
Vulcan 2000 classic LT

(Do not fit Vulcan 2000
/ Vulcan 2000 Limited)

- Bolt on to Kawasaki factory windshield mount of
99994-0047 (NOT included), not quick detachable
-ALL other Hardware included		- GPS fairing
VN1500 Mean Streak (2002-2003)
VN1600 Mean Streak (2004-2008)		-ALL Hardware included
- Speedometer on handlebar should be removed		- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)

VICTORY
Victory Boardwalk (2013-2014)-ALL Hardware included
- Speedometer on handlebar should be removed		- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)
Victory Cross Roads-ALL Hardware included
- Speedometer on handlebar should be removed		- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)
Victory Kingpin (2004 or up)-ALL Hardware included
- Speedometer on handlebar should be removed		- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)
Victory Hammer (2005 or up)-ALL Hardware included
- Speedometer on handlebar should be removed		 - Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)
Victory Vegas (All Vegas models)
(2004 or up)		-ALL Hardware included
- Speedometer on handlebar should be removed		- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)
Victory Hardball-ALL Hardware included
- Speedometer on handlebar should be removed		- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)
Victory Highball (2011-2012)-ALL Hardware included
- Speedometer on handlebar should be removed		- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)
Victory Highball (2014-2016)-ALL Hardware included
- Speedometer on handlebar should be removed		- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)
Victory Judge (2013-2016)-ALL Hardware included
- Speedometer on handlebar should be removed		- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)
Victory Gunner (2014-2016)-ALL Hardware included
- Speedometer on handlebar should be removed		- Plain fairing
(GPS fairing can be mounted if the speedometer on handlebar is removed)

TRIUMPH
Rocket III Touring

- Direct Mount to forks
- bolt-on mounting system, not quick detachable
- Relocation of the passing lamp is necessary and relocation kit is NOT provided
-ALL other Hardware included



- GPS fairing

PART APPLICATION

This item may be used with the following bikes:

  • HARLEY:
    • » DYNA
    • » SOFTAIL
    • » SOFTAIL 2018+
    • » TOURING/DRESSER
  • HONDA:
    • » SABRE 1100
    • » SHADOW ACE 1100
    • » SHADOW ACE 750
    • » SHADOW AERO 1100
    • » SHADOW AERO 750 C4
    • » SPIRIT 750 01-UP DC
    • » SPIRIT 750 07-UP C2
    • » VTX 1300 RETRO / S
    • » VTX 1300C
    • » VTX 1800 RETRO / S
    • » VTX 1800N
  • KAWASAKI:
    • » NOMAD 1700
    • » VN 900
    • » VN1600 CLASSIC
    • » VN1600 NOMAD
    • » VN2000
  • SUZUKI:
    • » C109R Boulevard
    • » C50-VOLUSIA 800
    • » C90-INTR 1500
  • VICTORY:
    • » BOARDWALK
    • » CROSS ROADS
    • » GUNNER
    • » HAMMER
    • » HAMMER 8BALL
    • » HARDBALL
    • » HIGH-BALL
    • » JACKPOT
    • » KINGPIN
    • » MAGNUM
    • » V92C
    • » V92TC
    • » VEGAS
    • » VEGAS 8BALL
  • YAMAHA:
    • » RAIDER
    • » ROADSTAR 1600/1700
    • » V STAR 1100 CLASSIC
    • » V STAR 650 CLASSIC

RELATED ITEMS

SUNGLASSES & GOGGLES
$18.95


CUSTOMER REVIEWS (3)

On July 7, 2016 Larryb12 wrote:
Arrived sooner than advertised, and was in perfect condition. Following the provided instructions made mounting and wiring easy. I would recommend this to anyone looking for an aftermarket fairing.

On April 14, 2015 ammodawg wrote:
CXMOORE, HOW DID THE GPS STEREO SYSTEM WORK FOR YOU.

On July 22, 2011 cxmoore wrote:
Sorry, I cannot agree with the first review that was posted. I contacted the mfg direct and was looking at 5-8 weeks to get the fairing, because of demand. That being the case I would have to say that it was probably not mean cycles that created the delay. As far as the mounting hardware, it’s not mean cycles job to build your bike, they sell parts so that you can do that. Reading the mfg install directs could have eliminated that problem. None the less I called mean cycles and they had a gps fairing sitting on the shelf. They pulled the fairing from inventory, inspected the fairing and called me to notify that it had a small scratch. They went the extra mile to send me pictures and worked with me on the pricing because of the scratch. I asked to have the fairing shipped next day and to my knowledge so far I will be receiving it today. (Keeping my fingers crossed) In short I have had nothing but the best experience dealing with MEAN CYLES and would strongly refer them. Just so you can see how quick this went I’m attaching the tracking info as I got it while typing this. Obetz, OH, United States 07/22/2011 7:12 A.M. Out For Delivery 07/22/2011 6:07 A.M. Arrival Scan Columbus, OH, United States 07/22/2011 5:57 A.M. Departure Scan 07/22/2011 4:56 A.M. Arrival Scan Louisville, KY, United States 07/22/2011 4:14 A.M. Departure Scan 07/22/2011 12:54 A.M. Forwarded to the facility in the destination city. 07/22/2011 12:25 A.M. Arrival Scan Miami, FL, United States 07/21/2011 10:08 P.M. Departure Scan 07/21/2011 9:25 P.M. Arrival Scan 07/21/2011 8:40 P.M. Departure Scan 07/21/2011 7:21 P.M. Origin Scan 07/21/2011 5:05 P.M. Pickup Scan United States 07/21/2011 5:06 P.M. Order Processed: Ready for UPS

CUSTOMER WHO BOUGHT THIS ITEM ALSO BOUGHT...

BLUETOOTH HANDLEBAR REMOTE CONTROL G1 FOR GPS FAIRING
BLUETOOTH HANDLEBAR REMOTE CONTROL G1 FOR GPS FAIRING View Item 		PATROL HARDBAGS (None bike specific)
PATROL HARDBAGS (None bike specific) View Item 		CONER HARDBAGS
CONER HARDBAGS View Item 		MULTI ADJUSTABLE DRIVER FLOORBOARDS FOR VTX 1300 CUSTOM
MULTI ADJUSTABLE DRIVER FLOORBOARDS FOR VTX 1300 CUSTOM View Item
