ABOUT THIS ITEM

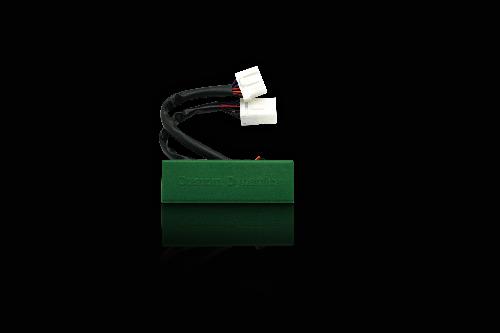

This module triples your visibility in the rear.
SMART Triple Play® Features
- Converts Rear Turn Signals to Run-Brake-Turn
- Works with LEDs or Incandescent Bulbs
- Choice of 10 User Selectable Built In Brake Light Strobe/Flash Patterns (User can also select no Strobe/Flash on Brake)
Pattern 0: Four Flashes then Solid (Incandescent or LED)
Pattern 1: Four Flashes, Solid for 3 Seconds, Repeat (Incandescent or LED)
Pattern 2: Seven Flashes then Solid (Incandescent or LED)
Pattern 3: Seven Flashes, Solid for 3 Seconds, Repeat (Incandescent or LED)
Pattern 4: Quad Strobe, then Solid for 1 Second then Quad Strobe (LED Only)
Pattern 5: Quad Strobe, Solid for 1 Second, then Quad Strobe, Solid for 3 Seconds, Repeat (LED Only)
Pattern 6: Custom LED Blaster X Cycle for 3 seconds, then Solid (LED Only)
Pattern 7: Custom LED Blaster X Cycle, Repeat (LED Only)
Pattern 8: Max Strobe 4 Seconds, Solid (LED Only)
Pattern 9: Constant Max Strobe Pattern (LED Only)
- Ability to apply Brake Strobe/Flash Patterns on Center Taillight only, Rear Turns Only, or Rear Turns & Center Taillight
- SMART Function - If Brake Strobe/Flash is Turned On, Strobe/Flashing will be paused on Turn Signal if Simultaneous Braking and Turning
- 10 User Selectable Running Light Intensities Allow User to Match the Running Light Brightness of Turns to Center Taillight
- Built In Short Circuit Protection
- Sealed, Weather Tight Case
- Slim Line Design: 4.2" x 1.4" x 0.6"
- 5 Year Warranty
Fits: '99-'03 Sportsters, '97-'11 Dynas (Except '09-'11 FXDB, '10-'11 FXDWG), '96-'10 Softtails (except '08-'10 FXCWC, '10 FLSTSE2), '97-'13 Touring (except '10-'13 FLHX, '10-'13 FLTRX, '10-'12 FLHXSE2, '12-'13 FLTRXSE, '13 FLHRSE5, 13 FXSBSE)
Does Not Fit HD Trikes
Important: For this system to be legal you must use RED single intensity rear turn signal lamps.
Important: This system is designed to work with single intensity rear turn signals, if you
do not have single intensity rear turn signals do not install this module
