ABOUT THIS ITEM

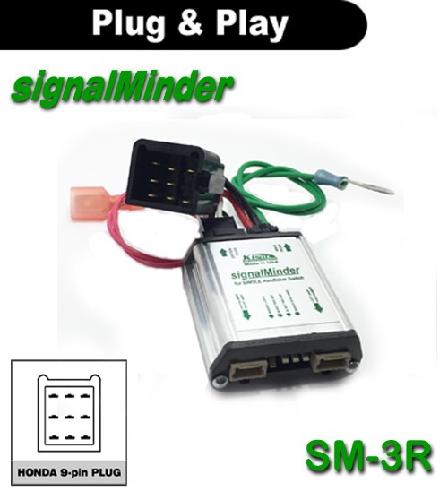

SM-3R unit is designed as a plug-in replacement for the newer Honda models with 9-pin connectors.
signalMinder uses a computer chip to cancel the turn signals. There are three selectable timeouts; 10, 20, 30 seconds.
■ Note! If your bike has two dash indicator lamps - one each for right and left side - then you must remove the Blue jumper located above the 3-pin option socket. If you have only one dash indicator then leave the Blue jumper in place.
RUNNING LIGHT OPTION:
This option is pre-wired for this unit. ALL the turn signals turn on as running lights. Using the DIP Switch #1, you can keep them off. You will still have the dual-channel system, which allows the 4-Way flash and Escort mode flashing.
When you activate the RIGHT turn signal three times in succession all the turn signals will flash like a hazard light.
NEW FEATURE (d17EBxx code)
Built-in RUN-TURN-BRAKE functions
No need to buy other turn signal conversion product. You get all the features of RUN-TURN-BRAKE and automatic signal canelling!
If you hook-up the 12 volt supply from the brakes to the signalMinder brake input:
BRAKE FLASH OPTION will flash the turn signal lamps every time you apply brakes. A short 2 second flash pattern begins with quick flashes then slows down to stay on solid.
BRAKE OVERRIDE OPTION suspends the time-out feature until the brakes are released. This allows continued flashing for those times when you are waiting at the signals to make a turn and do not want the time-out to cancel the flashing.
MORE FEATURES
HANDLE BAR RETURN SPRINGS:
With above options hooked-up, these tiny return springs can be inserted in the handlebar switch to make then come back to neutral automatically. You don't have use the Push-to-cancel of the handlebar switch.
Above options are not required to be installed, but utilizing them allows fully automatic turn signal cancellation. We highly recommend hooking them up.
Please Note! NONE of the wires on the bike have to be cut. The kit includes Scotchlok brand of Insulation Displacement Connectors (IDC) to tap into existing wires.
The last thing you need is to worry about canceling the turn signals! Use all of the built-in options of thesignalMinder and enjoy the ride.
signalMinder has an add-on product known as vectraLIGHT. These LED arrays simply plug into the signalMinderand inherit all of it's features. They are designed to mount under the turn signal mirrors.
signalMinder uses a computer chip to cancel the turn signals. There are three selectable timeouts; 10, 20, 30 seconds.
■ Note! If your bike has two dash indicator lamps - one each for right and left side - then you must remove the Blue jumper located above the 3-pin option socket. If you have only one dash indicator then leave the Blue jumper in place.
RUNNING LIGHT OPTION:
This option is pre-wired for this unit. ALL the turn signals turn on as running lights. Using the DIP Switch #1, you can keep them off. You will still have the dual-channel system, which allows the 4-Way flash and Escort mode flashing.
When you activate the RIGHT turn signal three times in succession all the turn signals will flash like a hazard light.
NEW FEATURE (d17EBxx code)
Built-in RUN-TURN-BRAKE functions
No need to buy other turn signal conversion product. You get all the features of RUN-TURN-BRAKE and automatic signal canelling!
If you hook-up the 12 volt supply from the brakes to the signalMinder brake input:
BRAKE FLASH OPTION will flash the turn signal lamps every time you apply brakes. A short 2 second flash pattern begins with quick flashes then slows down to stay on solid.
BRAKE OVERRIDE OPTION suspends the time-out feature until the brakes are released. This allows continued flashing for those times when you are waiting at the signals to make a turn and do not want the time-out to cancel the flashing.
MORE FEATURES
HANDLE BAR RETURN SPRINGS:
With above options hooked-up, these tiny return springs can be inserted in the handlebar switch to make then come back to neutral automatically. You don't have use the Push-to-cancel of the handlebar switch.
Above options are not required to be installed, but utilizing them allows fully automatic turn signal cancellation. We highly recommend hooking them up.
Please Note! NONE of the wires on the bike have to be cut. The kit includes Scotchlok brand of Insulation Displacement Connectors (IDC) to tap into existing wires.
The last thing you need is to worry about canceling the turn signals! Use all of the built-in options of thesignalMinder and enjoy the ride.
signalMinder has an add-on product known as vectraLIGHT. These LED arrays simply plug into the signalMinderand inherit all of it's features. They are designed to mount under the turn signal mirrors.
PART APPLICATIONThis item may be used with the following bikes:
|
