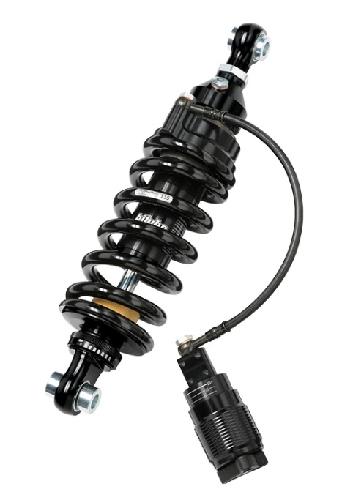

The XZE rear shock deliver race-proven comfort and performance in an affordable bolt-on package! Designed to give you the perfect balance of spring preload for proper traction and control. The internal floating piston separates the nitrogen gas from the shock oil maintaining damping control in any condition. Plug & Play in a day with installation instructions and hardware included! 12.5"and 13" height options with standard or heavy-duty spring rates, available in an all-Black finish. Like all Bitubo products, the XZE can be completely rebuilt, serviced and is covered by a Long-Life Warranty.

Features:
Stepless 5 position Rebound Adjustment
Threaded Spring Preload adjustment
Gas-charged mono-tube, with Internal Floating Piston
Fully rebuildable and serviceable
Cr-Si alloy steel springs
14mm steel rod with low friction surface treatment
CNC machine billet Ergal heads
Adjustments:

Rebound 7 clicks
Hydraulic spring preload 12mm-24 clicks
Length Adjustable up to 8mm
Fitment:

2018-Current M8 Softail Models


HD047XZE32V3

Length: 319mm

Stroke: 40mm

Spring Rate: 14kg/mm



HD048XZE32V3

Length: 333mm

Stroke: 55mm

Spring Rate: 11.5kg/mm



HD049XZE32V3

Length: 319mm

Stroke: 40mm

Spring Rate: 14kg/mm



HD049XZE12V3 -(does not include the remote knob)

Length: 319mm

Stroke: 40mm

Spring Rate: 14kg/mm
