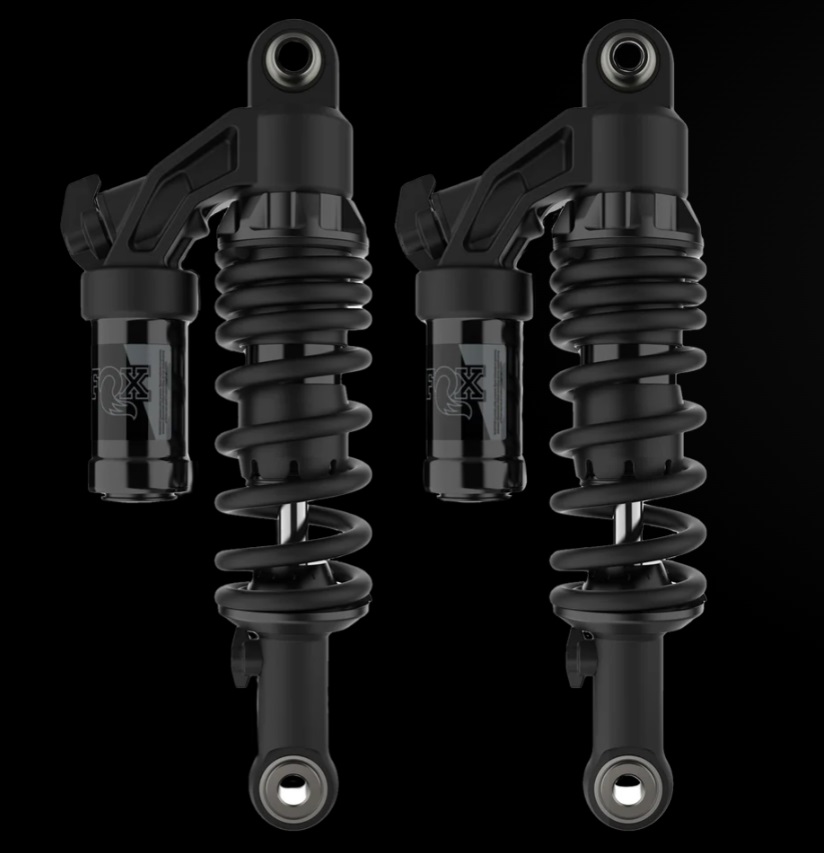

The FOX QS3-QSR rear shocks feature three-position compression and rebound switches for easy adjustments. The Quick Switch compression (QS3) three-position adjustments on the piggyback reservoirs allow you to select between three specific settings: maximum comfort, extra support during hard acceleration, or most responsive and precise handling. The Quick Switch rebound (QSR) settings make it easy to dial in the correct rebound for different riding situations: comfort on bumpy backroads, “any road” balance of control and comfort, and a “glued to the asphalt” feeling on smooth twisty roads.

Model-specific optimized ride tune
QS3: 3-position quick switch compression adjustment
QSR: 3-position quick switch rebound adjustment
Spring preload setting guide marks
Aluminum piggyback reservoirs
Gas-charged mono-tube with internal floating piston (IFP) design
1.5-inch diameter 6061-T6 aluminum type III hard-anodized bodies
Fully rebuildable and re-valvable
Advanced high-flow, deflective disc velocity-sensitive damping
5/8-inch diameter, low friction, super-finished hard chrome shafts
Matte black springs and black-anodized preload rings
