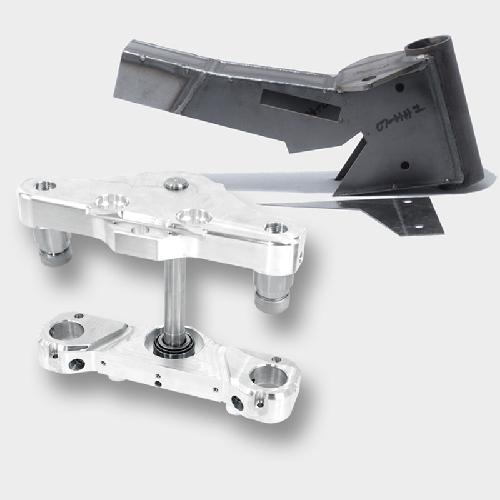

HHI Neck Rake Builders Kit

HHI now offers a weld-on replacement neck section for bagger/touring models.

This piece provides correct frame geometry for installing a 23", 26", or 30" wheel when installed with our FL raked triple trees.

Trees are available in machine or black anodized finish.

We provide this as a kit with our trees and correct extensions

(Factory Frame Rake= 26 degrees)

• Factory Triple Tree rake is 4 degrees. Our trees are a 12 degrees for the 30" kit, 9 degrees for the 26" kit and, 7 degrees on the 23" kit for a total of 7 degrees.

• This kit can be installed with the motor in the frame (well protected during welding & painting of course). However, it doesn’t take much more to pull the motor allowing a full color match paint job on the frame.

• Using our kit the neck is extended 1.5” forward and 1” up on both the 30" and 26" kit. (The 23" kit extends 1" forward and 1" up.)

• The total resultant rake using our neck rake builders kit is 40 degrees for a 23" wheel, 44 degrees for a 26" wheel, and 47 degrees for a 30" wheel.

• The resultant trail will provide proper handling at both low and hi speed.
•Roadglide Models: The HHI inner fairing mounting bracket in this kit has been modified & extended to allow adequate clearance for the triple trees.

INCLUDES FAIRING BRACKET-COMPLETE KIT
